High-quality SMT and through-hole assembly with advanced technology and rigorous quality control
First Pass Yield
Placement Accuracy
Prototype Turnaround
On-Time Delivery
Comprehensive solutions for all your electronic assembly requirements
Global procurement of electronic components with traceability
High-speed surface mount technology for components down to 01005

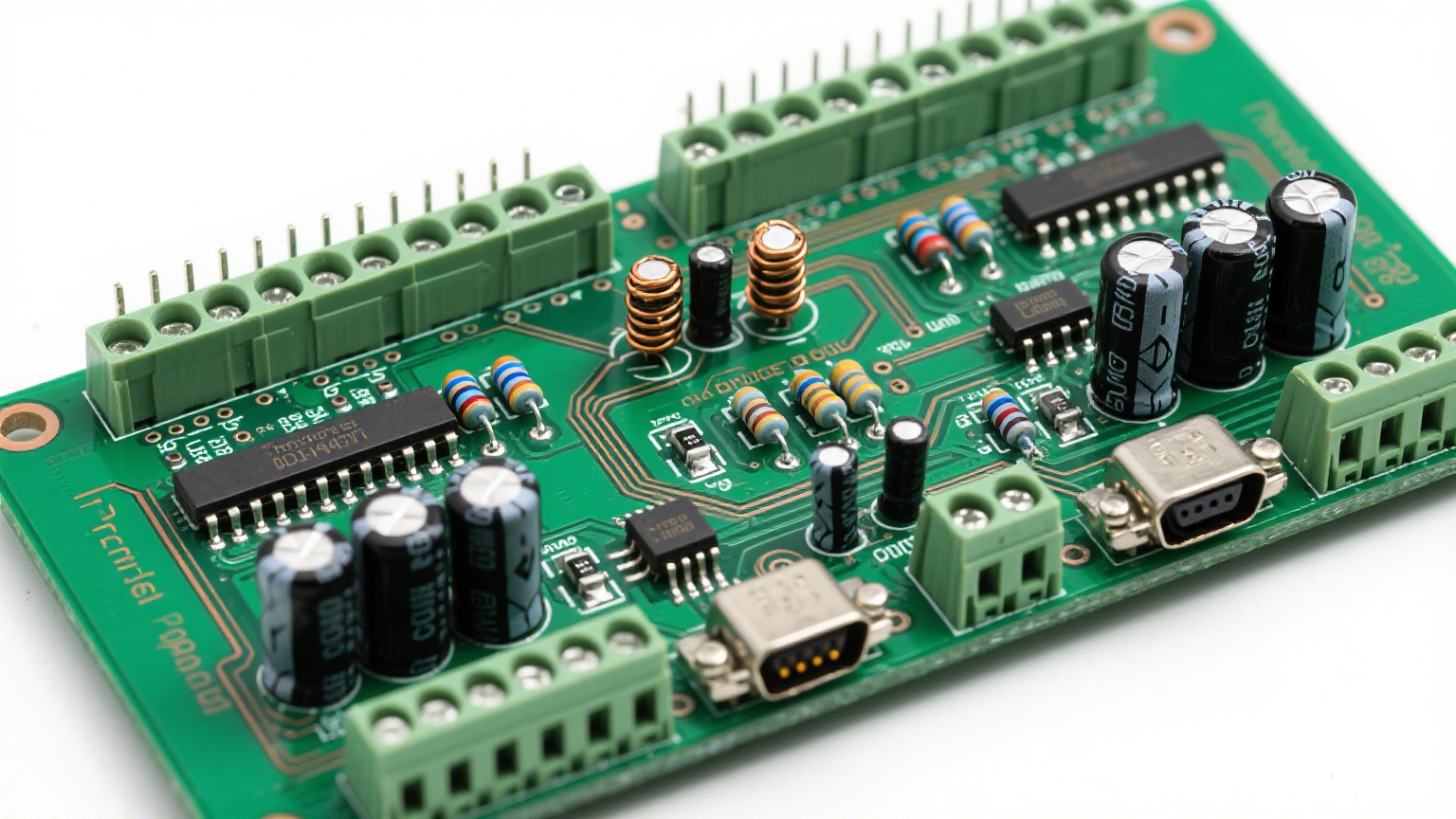

Manual and automated through-hole component assembly
Combination of SMT and through-hole components
Specialized assembly for flexible and rigid-flex circuits

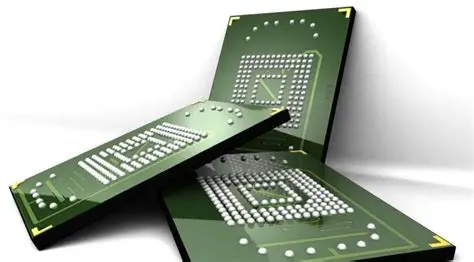

Precision ball grid array placement and rework
Rapid turnkey prototyping from 1-100 pieces
High-volume assembly with automated lines
Comprehensive testing protocols and quality control
Precision assembly with strict quality control at every stage

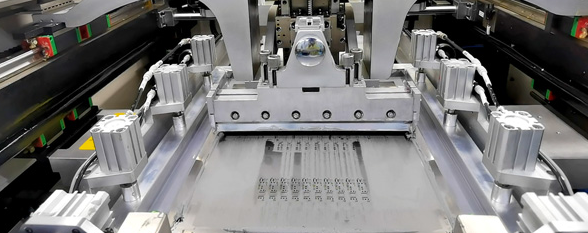

Precision stencil printing or jet dispensing
High-speed automated pick-and-place machines

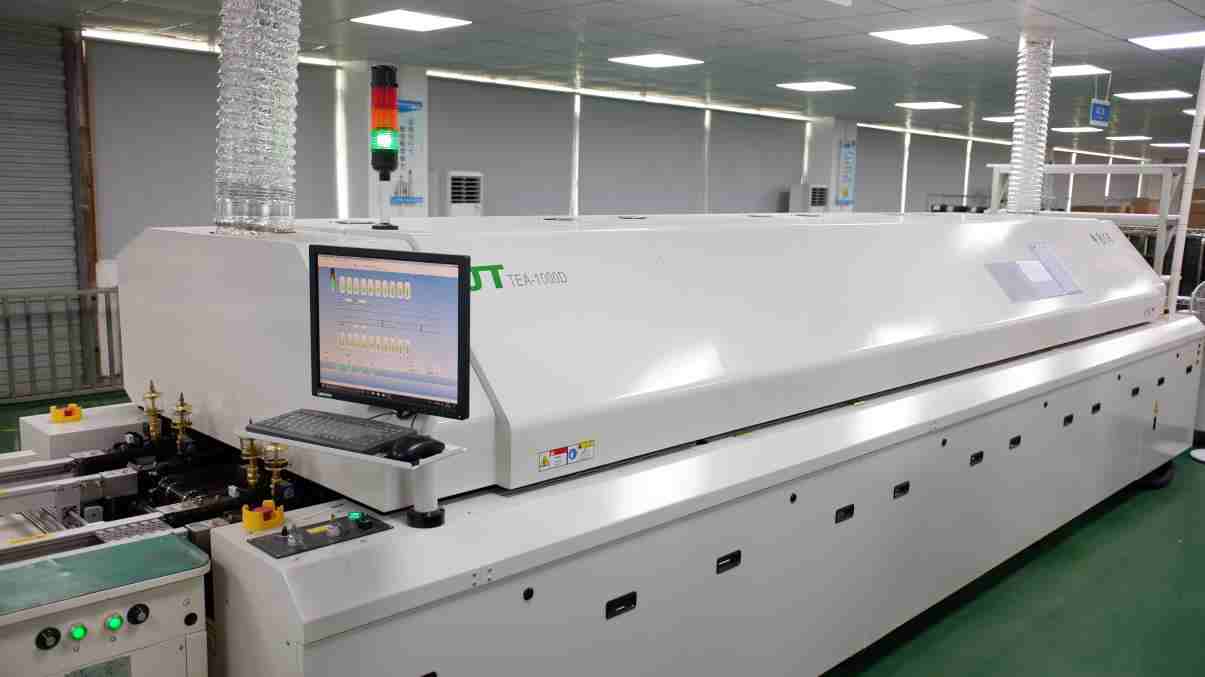

Controlled thermal profile for optimal solder joints
High-resolution inspection for component placement
Manual or automated component insertion
Selective wave soldering for through-hole components

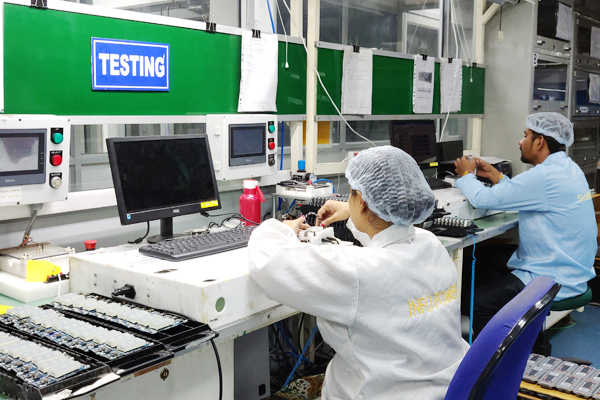

Functional, in-circuit, and boundary scan testing

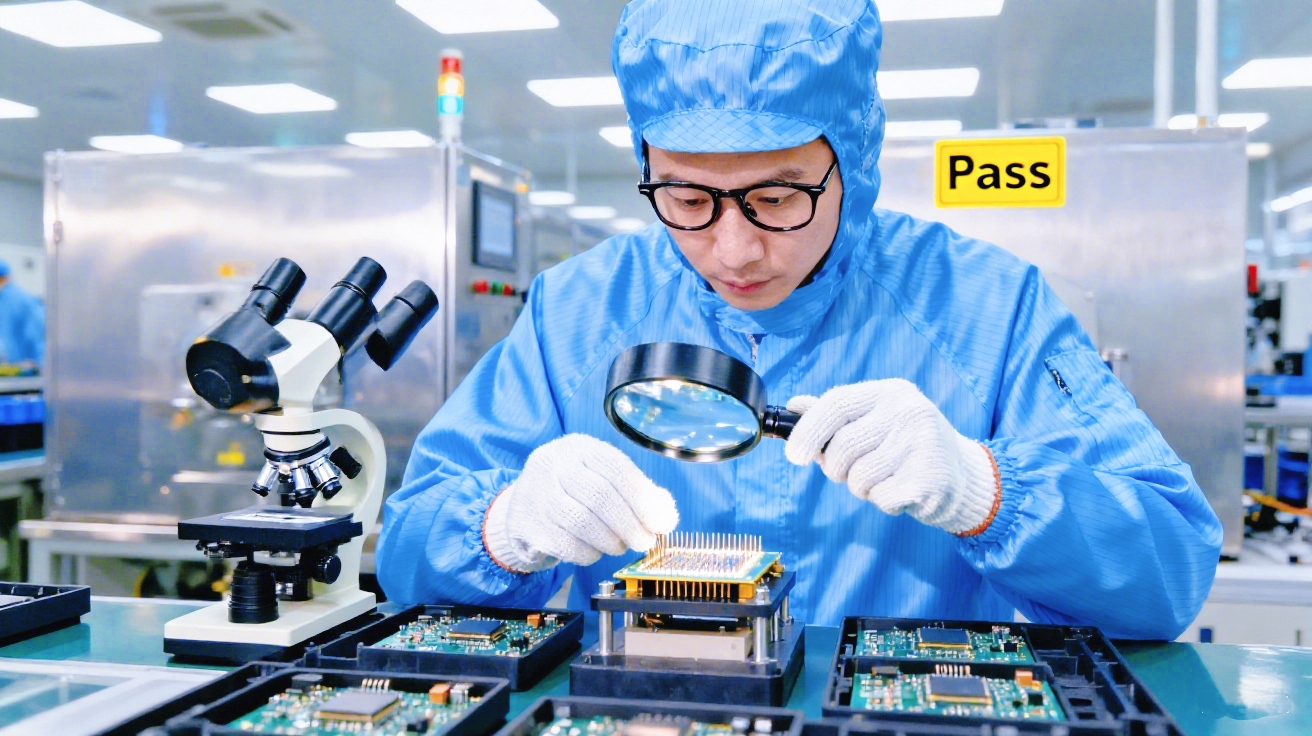

Visual inspection and conformal coating application
State-of-the-art equipment for precision PCB assembly
Technical specifications for our assembly services
| Capability | Standard | Advanced | Premium |
|---|---|---|---|
| Component Size (SMT) | 0603 (0201 metric) | 0402 (01005 metric) | 0201 (008004 metric) |
| Placement Accuracy | ±0.05mm | ±0.035mm | ±0.025mm |
| Fine Pitch Components | 0.5mm pitch | 0.4mm pitch | 0.3mm pitch |
| BGA/Pitch | 0.8mm pitch | 0.5mm pitch | 0.3mm pitch |
| QFN/DFN | 0.5mm pitch | 0.4mm pitch | 0.3mm pitch |
| Board Size | 50x50mm to 500x500mm | 30x30mm to 600x600mm | 20x20mm to 700x700mm |
| Board Thickness | 0.6mm – 3.2mm | 0.4mm – 5.0mm | 0.3mm – 8.0mm |
| Lead Time (Prototype) | 3-5 days | 48 hours | 24 hours |
| Volume Production | Up to 100k/month | Up to 500k/month | 1M+/month |
| Quality Standards | IPC-A-610 Class 2 | IPC-A-610 Class 3 | Medical/Aerospace Grade |
PCB assembly solutions for diverse applications
Control systems, PLCs, and sensors
Diagnostic equipment and monitors
ECUs, infotainment, and ADAS systems
Networking and communication equipment
Smart devices and home appliances
Smart lighting systems and controllers
Connected devices and sensor networks
Solar inverters and energy management systems
Advantages that make us the preferred manufacturing partner
ISO 9001, ISO 13485, IATF 16949 certified
24-48 hour turnaround for prototype orders
DHL/FedEx partnerships for worldwide delivery
Strict NDA protection keeps your project info confidential.
Comprehensive testing at every production stage
From 1-piece prototypes to 100,000+ volume
What our customers say about our PCB assembly services
“FUMAX assembled our complex medical device PCBA with exceptional quality. Their attention to IPC standards and cleanroom processes exceeded our expectations.”
CTO, MedTech Solutions
“Their 48-hour prototype turnaround saved our product launch. The assembly quality was perfect, with zero defects in the first batch.”
Product Manager, TechStart Inc.
“The comprehensive testing and quality assurance program at FUMAX gave us complete confidence in our product’s reliability for automotive applications.”
Engineering Director, AutoElectronix
Upload your design files and get an instant quote for your PCB assembly project
Email for PCB Assembly Quote
